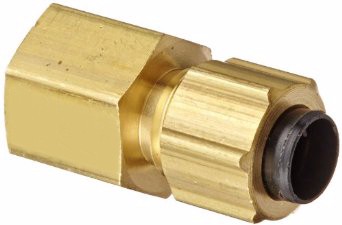

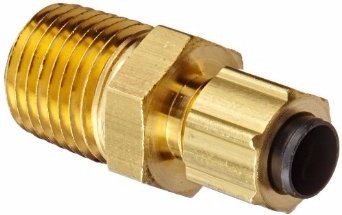

Poly-Tite brass compression tube fittings, female connector 66P, male connector 68P
Show all P/N. Show all dimensions & specs. Back

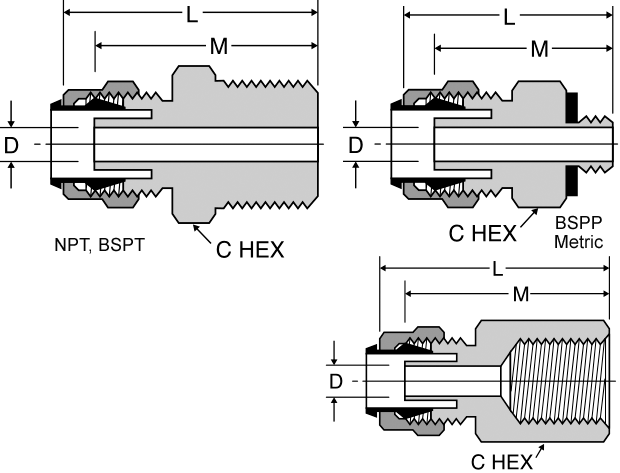

Part No.	Tube OD	Pipe Thread		Dimensions(mm)				Price	Qty.
Part No.	Tube OD	Type	Size	C_hex	L	M	D	Price	Qty.
								USD/pc	pc
66P-4-2	1/4	NPT	1/8	14.29	24.64	21.84	3.18		X
66P-4-4	1/4	NPT	1/4	15.88	29.97	27.18	3.18		X
66P-5-2	5/16	NPT	1/8	14.29	24.64	21.84	3.66		X
66P-6-4	3/8	NPT	1/4	15.88	29.97	27.18	5.18		X
66P-8-6	1/2	NPT	3/8	20.64	33.27	30.48	8.2		X
68P-4-1	1/4	NPTF	1/16	9.53	26.92	24.13	3.18		X
68P-4-10x32	1/4	NPTF	10-32	9.53	21.84	19.05	2.39		X
68P-4-2	1/4	NPTF	1/8	11.11	26.92	24.13	3.18		X
68P-4-4	1/4	NPTF	1/4	14.29	31.75	28.96	3.18		X
68P-4-6	1/4	NPTF	3/8	17.46	32.51	29.72	3.18		X
68P-5-2	5/16	NPTF	1/8	11.11	26.67	24.13	3.66		X
68P-5-4	5/16	NPTF	1/4	14.29	31.5	28.96	3.66		X
68P-6-2	3/8	NPTF	1/8	12.7	27.94	24.89	5.18		X
68P-6-4	3/8	NPTF	1/4	14.29	32.77	29.72	5.18		X
68P-6-6	3/8	NPTF	3/8	17.46	32.77	29.72	5.18		X
68P-8-4	1/2	NPTF	1/4	17.46	37.08	32.77	8.13		X
68P-8-6	1/2	NPTF	3/8	17.46	34.8	32.77	8.2		X
68P-4-2R	4	BSPT	1/8	12	27.5				X
68P-6-2R	6	BSPT	1/8	12	28.5				X
68P-6-4R	6	BSPT	1/4	14	30				X
68P-8-2R	8	BSPT	1/8	13	29.5				X
68P-8-4R	8	BSPT	1/4	14	31				X
68P-8-6R	8	BSPT	3/8	17	32.5				X
68P-10-2R	10	BSPT	1/8	15	31				X
68P-10-4R	10	BSPT	1/4	15	32				X
68P-10-6R	10	BSPT	3/8	17	33.5				X
68P-10-8R	10	BSPT	1/2	21	35				X
68P-12-4R	12	BSPT	1/4	17	33.5				X
68P-12-6R	12	BSPT	3/8	17	34.5				X
68P-12-8R	12	BSPT	1/2	21	36				X
68P-18-8R	18	BSPT	1/2	25	38.5				X
68P-4-M6x1	4	Metric	M6x1	10	26.5				X
68P-4-M8x1	4	Metric	M8x1	12	27.5				X
68P-4-2G	4	BSPP	1/8	13	28				X
68P-6-M8x1	6	Metric	M8x1	12	29.3				X
68P-6-M10x1	6	Metric	M10x1	13	29.8				X
68P-6-2G	6	BSPP	1/8	13	29.8				X
68P-6-4G	6	BSPP	1/4	16	32.3				X
68P-8-M10x1	8	Metric	M10x1	13	29.8				X
68P-8-2G	8	BSPP	1/8	13	29.8				X
