Your Location: Bearings -> Roller bearings -> Tapered roller bearings

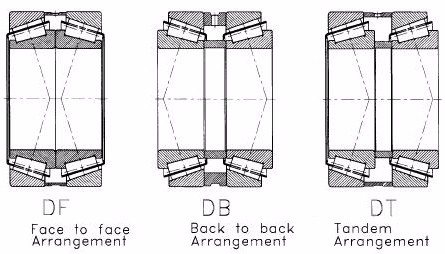

Single row tapered roller bearings matched & arranged in tandem, metric series
Show all P/N. Show all dimensions & specs. Back

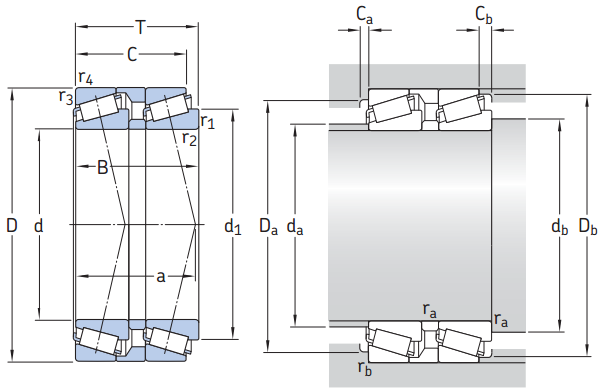

Designation	Boundary dimensions(mm)				Tolerance	Clearance μm	Basic load ratings kN		Price	Qty.
Designation	d	D	T	d₁	Tolerance	Clearance μm	dynamic C	static C₀	Price	Qty.
									USD/pc	pc
T7FC 055T73/QCL7CDTC10	55	115	73	89.5	P0	10	216	325		X
T7FC 060T80/QCL7CDTC10	60	125	37	97.2	P0	10	305	405		X
T7FC 070T83/QCL7CDTC10	70	140	39	110	P0	10	355	480		X
T7FC 080T98/QCL7CDTC20	80	160	98	125	P0	20	391	630		X
T7FC 055T73/QCL7CP6DTC10	55	115	73	89.5	P6	10	216	325		X
T7FC 060T80/QCL7CP6DTC10	60	125	37	97.2	P6	10	305	405		X
T7FC 070T83/QCL7CP6DTC10	70	140	39	110	P6	10	355	480		X
T7FC 080T98/QCL7CP6DTC20	80	160	98	125	P6	20	391	630		X
T7FC 055T73/QCL7CP5DTC10	55	115	73	89.5	P5	10	216	325		X
T7FC 060T80/QCL7CP5DTC10	60	125	37	97.2	P5	10	305	405		X
T7FC 070T83/QCL7CP5DTC10	70	140	39	110	P5	10	355	480		X
T7FC 080T98/QCL7CP5DTC20	80	160	98	125	P5	20	391	630		X
T7FC 055T73/QCL7CP4DTC10	55	115	73	89.5	P4	10	216	325		X
T7FC 060T80/QCL7CP4DTC10	60	125	37	97.2	P4	10	305	405		X
T7FC 070T83/QCL7CP4DTC10	70	140	39	110	P4	10	355	480		X
T7FC 080T98/QCL7CP4DTC20	80	160	98	125	P4	20	391	630		X
T7FC 055T73/QCL7CP2DTC10	55	115	73	89.5	P2	10	216	325		X
T7FC 060T80/QCL7CP2DTC10	60	125	37	97.2	P2	10	305	405		X
T7FC 070T83/QCL7CP2DTC10	70	140	39	110	P2	10	355	480		X
T7FC 080T98/QCL7CP2DTC20	80	160	98	125	P2	20	391	630		X
